PG5 [저가형]디지털 압력게이지[0.25% fs]
|
작성일 : 15.09.03 11:51
|
|
글쓴이 :
최고관리자
조회 : 9,721
|

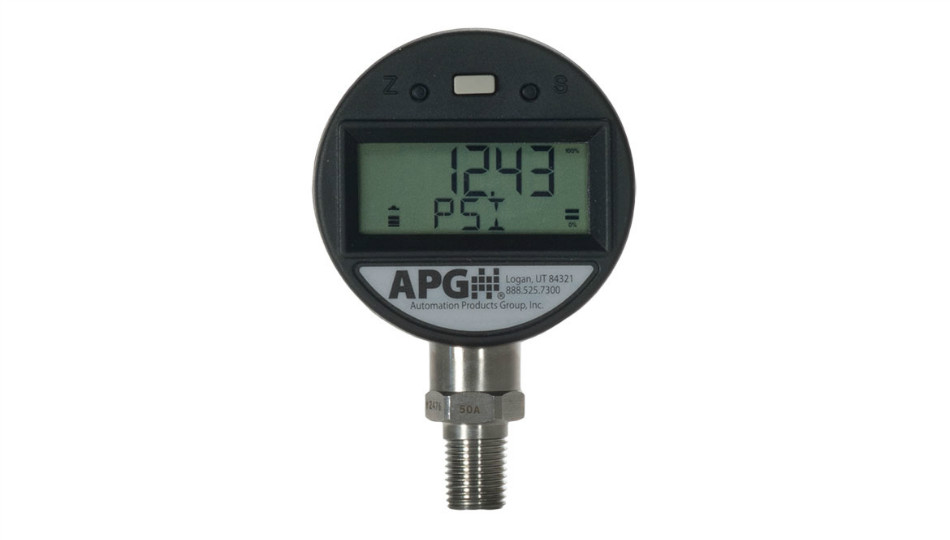

조작이 간편한 디지털 압력 게이지(±0.25%)
With Tare, Peak Hold, and whole list of other functions, the PG5 is a powerful gauge for indoor use.
Description
5-digit, 0.4인치 숫자크기, 다양한 압력 단위(psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2), 4~20mA, 0~5V출력, Tare on/off기능
다양한 압력범위(-1~10,000psi(700bar) - 카다로그 참조.
최대 20,000psi까지 사용가능 - 공장문의시.
자동Off시간 설정 가능 2,4,8,16,32분
다양한 사이즈의 피팅, 후면 커넥터 선택가능.
기본 ±0.25% of full scale with NIST성적서 제공되며, Optional ±0.1% of full scale with NIST성적서 제공
Specifications
Performance- Pressure Range
- Up to 10,000 psi
- Accuracy
- ±0.25% of full scale
- NIST up to ±0.1% available in select ranges
Programming- Functions
- Max-Min, Tare, Peak Hold, Units of Measure
Electrical- External Power
- 9-28 VDC
- Batteries
- Standard 9V
Physical- Housing
- Injection molded EMI-X® PDX-W-88341
- Wetted-materials
- 15-5 SS
- 316L SS
ApprovalsN/A
Connectivity- Outputs
- 4-20mA
- 0-2 VDC
- 0-5 VDC
- Internet Connectivity
- with RST-5001
Environmental- Operating Temperature
- 0 to 160° F
|
|
|
| |
|
| |
|
|
